You no longer have to get rid of components with torn or worn threads! The repair and reinforcement of threads is no problem with our W.TEC®INSERT COIL thread inserts. Achieve reliable reinforcement of threads for robust connections for every application!
You no longer have to get rid of components with torn or worn threads! The repair and reinforcement of threads is no problem with our W.TEC®INSERT COIL thread inserts. Achieve reliable reinforcement of threads for robust connections for every application!
Thread inserts reinforce each thread!
High-strength, vibration-proof screw connections can only be achieved by high-performance, high-load nut threads. Our W.TEC®INSERT COIL thread inserts repair ripped, worn, seized or damaged threads reliably and strengthen the nut thread drastically. By using threaded inserts for thread repair, you can create robust and resistant internal threads in low-shear materials (light metal alloys, aluminium, brass, plastic, etc.)
After mounting the threaded inserts, which lay like a spiral coil in the existing thread, the components have better properties than the original thread. Ideal for thread reinforcement in light metal or mechanical engineering, in the offshore sector or in agricultural technology!
How the wire insert for thread improvement works

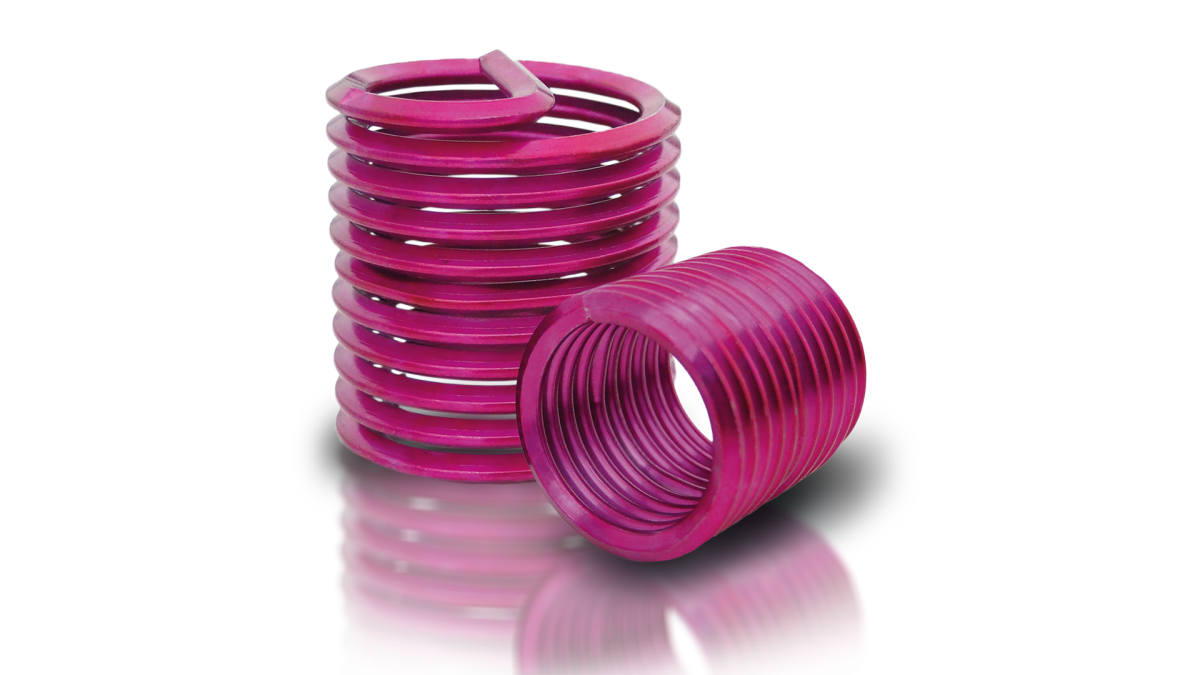

Threaded inserts made of stainless chromium-nickel steel are embedded mechanically without additional locking pins, sealants or adhesives: they can be applied to the previously prepared special thread like a commercially available screw and screwed in. The thread insert consists of a rhombically profiled wire formed into a helix in combination with a driving pin, which is removed at the predetermined breaking point after installation.
The diamond-shaped cross-section, the perfect material selection, combined with the high care in the production processes guarantee you further advantages in terms of surface quality, wear resistance, thread friction, corrosion and heat resistance.
The W.TEC®INSERT COIL thread inserts can be easily installed in existing workpieces:
Core hole drilling
First, drill the damaged thread or re-drill the core hole.
Thread cutting or thread forming
Cut or for even more resilience form the thread with the special W.TEC®Screw tap.
Set thread insert by hand or by machine
Screw it into the core hole, in the direction of rotation, with or without insertion tool.
Break locking pins (if available)
Use a tang break-off tool to break off the pin with a slight blow at the predetermined breaking point and remove it.
The advantages at a glance:
- economic repair of torn out threads
- high load capacity
- durable connection, even with small diameters
- improved reject recovery
- create a heavy-duty threaded armour
- firm fit
- no wear and reduced thread wear
- disassembly possible for reuse
- corrosion protection and heat resistance
Wire thread inserts for repair
As wire thread inserts repair torn threads, in case of repair you do not have to replace any workpieces or components. This guarantees you an economical repair of components. Thread inserts are successfully used for years in various industries, such as machine and plant construction, automotive, commercial vehicle, tool and special machine construction, plastics industry, military technology, aerospace industry.
Threaded inserts meet the requirements of several factory standards and can be provided through our proven supply solutions.
